5A06O 5A06(LF6) AMr6 1560 Aluminum Alloys Aerospace Conduit

JimaFor
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

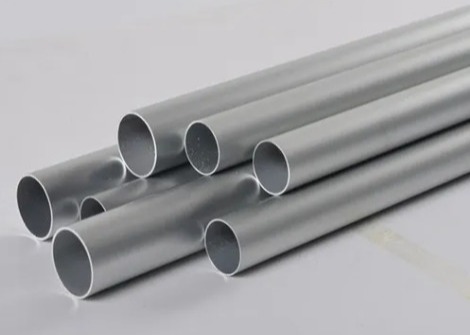

5A06O 5A06(LF6) AMr6 1560 Aluminum Alloys Aerospace Conduit

Brand Name : JIMA

Model Number : ALP

Certification : ISO9001-2008,SGS,ROHS.

Place of Origin : CHINA

MOQ : 1PCS

Price : Negotiations

Payment Terms : T/T, L/C

Supply Ability : 10000 pcs /per month

Delivery Time : 10~20days

Packaging Details : wooden pallet

Application : 1. Branch or part of the main pipeline of aircraft fuel delivery system 2. Pipeline of aircraft landing gear hydraulic system 3. Protect wire harnesses inside wings or fuselag

Name : 5A06O 5A06(LF6) AMr6 1560 Aluminum Alloys Aerospace Conduit

Alloy : 5A06O 5A06(LF6) AMr6 1560

Process : Forging

Contact Now

5A06O 5A06(LF6) AMr6 1560 Aluminum Alloys Aerospace Conduit

Mechanical Property:
Mechanical Property
Alloy State
5A06O 5A06(LF6) AMr6 1560
Sample Size
∅165mm*2.5mm*4000mm

∅256mm*2.0mm*2000mm
Size
Customized
MOQ
1PCS
Standard
GJB 2379A-2015 And Q/XZ-A-008-2021Technology Agreement



Application of different specifications:

Size

Main Applications

∅165mm2.5mm4000mm

1. Branch or part of the main pipeline of aircraft fuel delivery system

2. Pipeline of aircraft landing gear hydraulic system

3. Protect wire harnesses inside wings or fuselage

4. Drainage pipeline in the wing structure

∅256mm2.0mm2000mm

1. Main air - delivery pipeline of aircraft environmental control system

2. Protect cables of large - scale avionic equipment

3. Auxiliary passage inside the aircraft fuselage for equipment installation and wiring

Material Properties:

Size Specification

Si

Cu

Mg

Zn

Mn

Ti

Be

Fe

Al

∅165mm *2.5mm * 4000mm,∅256mm * 2.0mm * 2000mm

≤ 0.40%

≤ 0.10%

5.80% - 6.80%

≤ 0.20%

0.50% - 0.8%

0.02% - 0.10%

0.0001% - 0.005%

0.000% - 0.400%

Balance



Forging process:

Billet Preparation Heating Treatment Forging Operation Post-treatment
